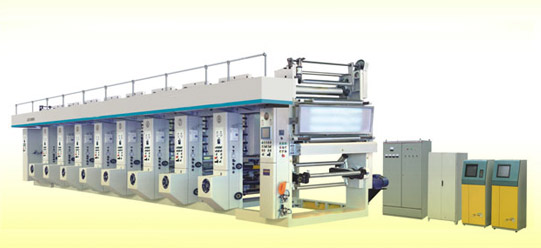

TD-AZJ-Z Color Rotogravure Press For Paper

Application:
This machine is suitable for printing Paper package material in roll for foodstuff,medicine,cigarette,wine，decorating paper,carton preprinting,etc.

Technical Data:

Fangbang is continuously seeking for development of their products. For this reason.we reserves the right to supply the improved product without advance notice.

Performance and Features：
1、Every control module of the automatic color register system is equipped with microprocessor and can correct the deviation of color register quickly and accurately.
2、Main motor equipped with frequency converter for speed requlation.
3、Separated turret type unwinding station,automatic tension controller and magnetic powder brake for tension control.
4、Separated turret type rewinding station,torque motor for rewinding driving,auto splicing with pre-drive function, non-stop for material roll change.
5、Closed oven and independent heating hot air blowing system,automatic constant temperature system.
6、Pneumatic impressing system and pneumatic doctor blade system.
7、Diaphragm-type pneumatic ink auto circulating system.
8、Inflatable air shaft for unwinding/rewinding material loading.
9、Printing linear speed and meter counting display.
10、Shaft less printing cylinder loading dervice,Printing cylinder is fixed by shaft-less air chuck.(Option:shaft type printing cylinder loading)
10、Option:web video.
12、Option:Seven vector motor close loop tension control system.
