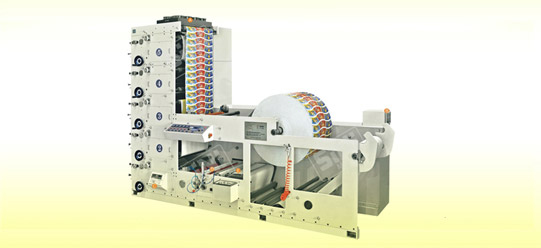

Briefing introduction
Briefing introduction:
1. Adopt the anilox roller to spread ink.
2. Unwinding and rewinding are controlled by magnetic power brake, clutch, (or by automatic tension controller of mitsubishi, made in Japan).
3. Each printing unit adopt 360o for registration.
4. Each printing unit have one IR drier.
5. The rubber roller can break away automatically while parking, and running at a low speed, in order to avoid ink being dry.
6. The main motor is adopted the import stepless regulation of frequency conversion.
7. Unwinding, web guiding, printing, IR drying and rewinding can be finished in one process, this is an ideal machine for printing factory to print many kinds of paper cup.
Main technical parameters:
Model | RY650-5B | RY850-5B |
Printing Speed | 60m/min | 60m/min |
Printing Colour | 5 Colours | 5 Colours |
Max. Web Width | 660mm | 860mm |
Max. Printing Width | 650mm | 850mm |
Max. Printing Diameter | 1400mm | 1400mm |
Max. Winding Diameter | 1400mm | 1400mm |
Printing Girth | 175-380mm | 175-580mm |
Precison of Chromatography | ±0.15mm | ±0.15mm |
Dimensions(L*W*H) | 4000*1700*2600mm | 4000*1900*2700mm |
Machine Weight | About 5000kg | About 2400kg |
A IR dry
B Rewinding tension controller
C Unwinding tension controller (Mitsubishi, Japan)
D Corona treater
E Web guiding
