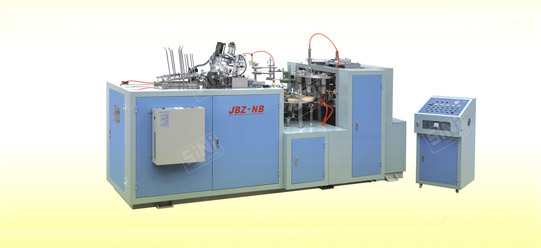

JBZ-NB Paper Cup With Handle Forming Machine
Briefing introduction
Briefing introduction:
JBZ-NB Paper Cup with handle Forming Machine is an automatic machine with multi-working station. It produces two-side film-coated paper cup or single side PE coated paper cup through the procedure of automatic paper cup wall feeding, paper handle feeding, ultrasonicwelding, handle stick, oil silicon lubrication, bottom punching, heating, knurling, curling and cup discharge. The sealing system is ultrasonic sealer, so this model is suitable for making two side PE coated paper or single side PE coated paper with full printing design cups with handle. This machine not only can make the cups with handle, and also can make the cups without handle,This cup is for hot drinking, such as soft drinking, and coffee etc.
Main technical parameters:
| Model | JBZ-NB12 | JBZ-NB22 | JBZ-NB36 |
| Cup size | 6,8,12 oz | 16,22oz | 36 oz |
| Raw material | Two side PE coated paper | ||
| Capacity | 40-50pcs/min | 35-45pcs/min | 30-35pcs/min |
| Power source | 380V 50Hz(it can be changed if customer require) | ||
| Total power | 6.5KW | ||
| Weight | 1800Kg | 2000Kg | 2500Kg |
| Package size | 2800*1350*1800mm | 2800*1320*1850mm | 2800*1320*2000mm |
| (L*W*H) | 800*750*1300mm | 800*750*1300mm | 800*750*1300mm |
| Air source | 0.18m3/min;0.6MPa customer-owned | ||
